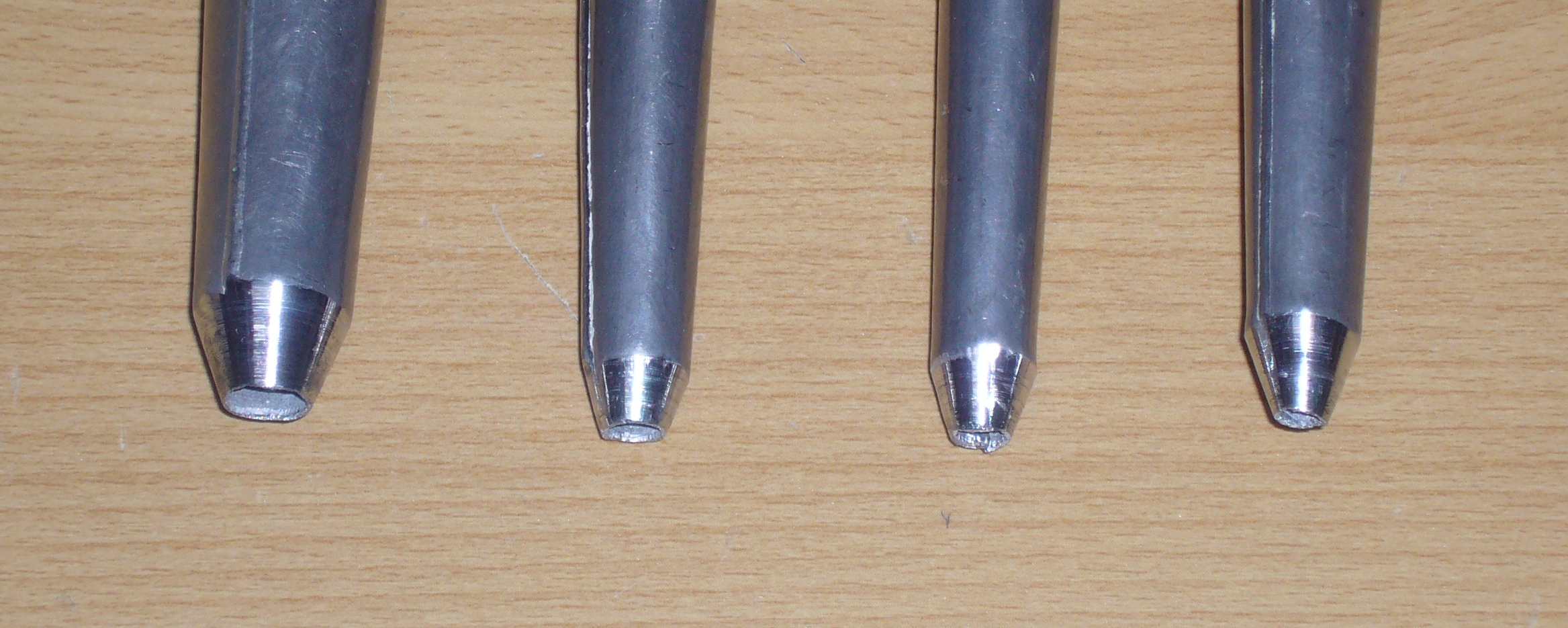

Culphorns for drawing in metal pipe feet in versch. Shapes and as rotating machine tool (see below).

Brass baffles

Designation narrow medium double
Inner diameter I 40 mm 50 mm 65 mm
Inner diameter II 59 mm
Inner angle I 28° 60° 80°
Interior angle II 65°
Length 120 mm 80 mm 80 mm


Brass Rotating Culp Tool

Quickly and efficiently kulpen new and old metal pipe feet up to approx. 25 mm diameter. Due to the spindle-shaped elevation in the cone in conjunction with a clockwise rotating electric hand drill, this tool is a great helper in metal pipe making or re-intonation work.

  • Special brass cone with plastic protective ring
  • cone angle approx. 60
  • insertright turning
  • tool shank D=10 mm for drill chuck
  • tool diameter approx. 50 mm
  • Total length approx. 105 mm

Do you need a professional device for clamping your electric hand drill? Then click on holder for drill.

Product variants
Part number
Net price
Gross price
Culphorn narrow brass
54,60 €
64,97 €
Culphorn double brass
87,50 €
104,13 €
Culp tool brass rotating for machine with protective ring
82,60 €
98,29 €
Culphorn medium brass
52,40 €
62,36 €
